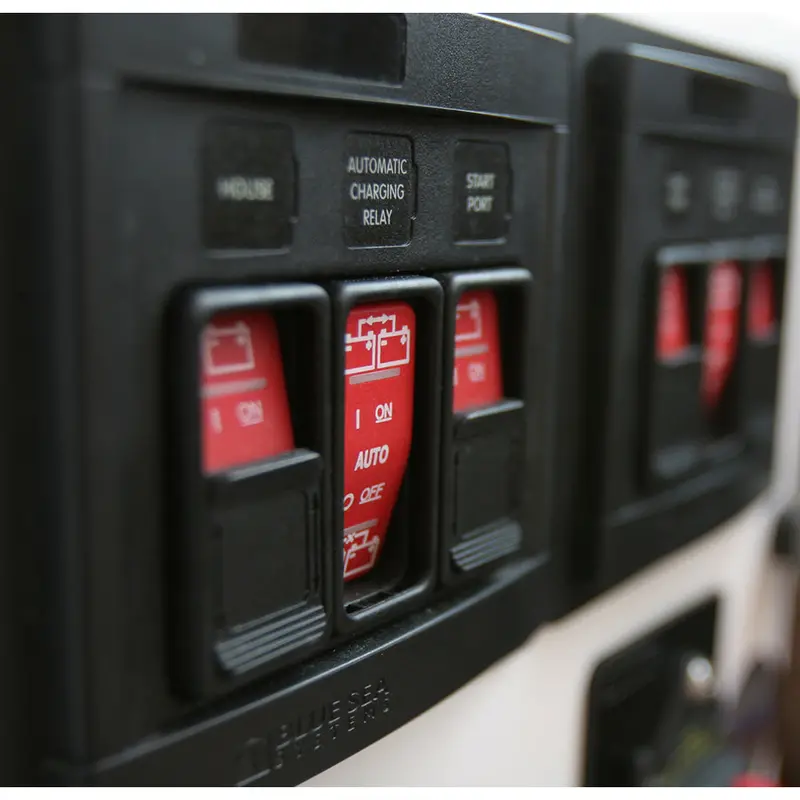

Blue Sea Systems 3-Switch Remote Panel (2× 2145 + 1× 2146 Contura Ii) – Model 1147

Description

Remote Control Panel w/(2)2145 & (1)2146 Remote Control Contura Switch
Features:

• Lockout slides reduce the risk of accidental switching
• For use with two ML-Series Switches and one ML-Series Automatic Charging Relay
• Includes labels illustrated only
• Over 500 individual labels available

Specifications:

• Positions:3
• Nominal Voltage:12V DC / 24V DC
• Height:4.75″ (120.65mm)
• Width: 4.88″ (123.95mm)
• Depth:2.00″ (50.8mm)
• Weight:0.83lb (0.38kg)
  Included:
  (2) – 2145 – SPDT Remote Control Contura Switch – (ON)-OFF-(ON)
  (1) – 2146 – SPDT Remote Control Contura Switch – ON-OFF-ON

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Specifications:

  • AC/DC: DC
  • Box Dimensions: 6″H x 6″W x 9″L WT: 0.85 lbs
  • UPC: 632085011475

  Quick Guide (pdf)
  Owner’s Manual (pdf)
